PLCC Site Monitor Adapters

This adapter plugs into the unit under test PLCC or LCC socket to provide easy access connection points for test instrumentation, signal injection, and temporary external circuit connection. The PLCC or LCC socket on the top of the adapter is a high quality test socket to ensure a long use able life and solid signal connection after many chip insertions.

Adapters on these pages are listed in ascending order by the number of pins.

Part Number   Description    Price Shopping Cart

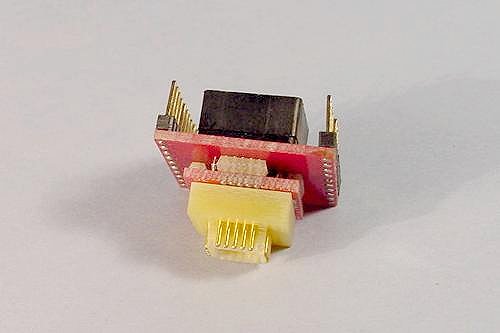

M20PL-PL 20 pin PLCC Pin Monitor Adapter
  • PLCC Package Type
  • 20 Pins
  • 50 mil Pitch
$130.00
M28PL-PL   28 pin PLCC Pin Monitor Adapter
  • PLCC Package Type
  • 28 Pins
  • 50 mil Pitch
$140.00
M32PL-PL 32 pin PLCC Pin Monitor Adapter
  • PLCC Package Type
  • 32 Pins
  • 50 mil Pitch
$145.00

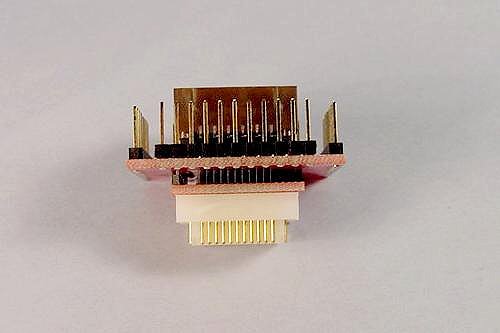

M44PL-PL 44 pin PLCC Pin Monitor Adapter
  • PLCC Package Type
  • 44 Pins
  • 50 mil Pitch
$150.00

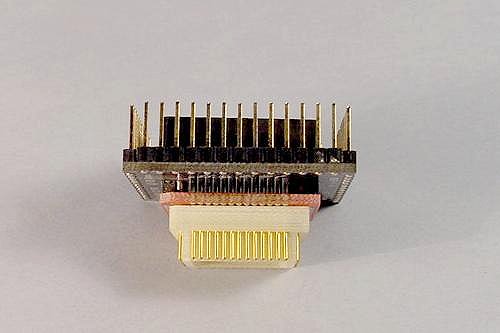

M52PL-PL 52 pin PLCC Pin Monitor Adapter
  • PLCC Package Type
  • 52 Pins
  • 50 mil Pitch
$160.00
M68PL-PL 68 pin PLCC Pin Monitor Adapter
  • PLCC Package Type
  • 68 Pins
  • 50 mil Pitch
$170.00

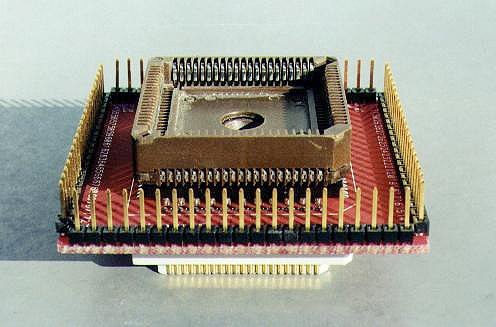

M84PL-PL 84 pin PLCC Pin Monitor Adapter
  • PLCC Package Type
  • 84 Pins
  • 50 mil Pitch
$190.00
